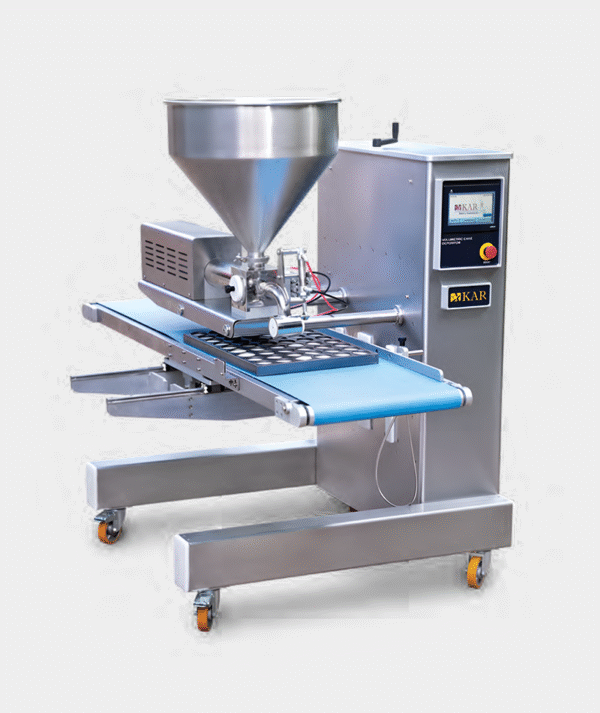

Volumetric Cake Depositor

Introducing the new volumetric cake depositor with advanced technology to give you speed and efficient depositing of soft and hard dough with inclusions in the product.

Technical Specifications

Model

VCD-1000

VCD-1000M

Deposit Range

20 - 150 gm

20 - 150 gm

Speed Range

20 - 25 cycle / min

20 - 25 cycle / min

Installed Power (KW/HP)

1

0.6

Production Range

300 Kgs/Hour

300 Kgs/Hour

Connecting Voltage

3 Ph 415 V, 50 Hz

3 Ph 415 V, 50 Hz

Measurements

Model

VCD-1000

VCD-1000M

Height (mm)

1380

1380

Width (mm)

1000

1000

Length (mm)

1380

1380

Weight (Approx.)

330 Kgs

300 Kgs

Description

Key Benefits

  • Accuracy in depositing products with inclusions is highly improved.
  • Single machine for soft dough & hard dough depositing.
  • The piston and table unit is driven by servo for optimum control of different product densities.
  • Up to 10 programmable deposit modes for depositing different dough densities.
  • You can store the recipe by product name and other information .
  • Heavy duty stainless steel construction.
