Description

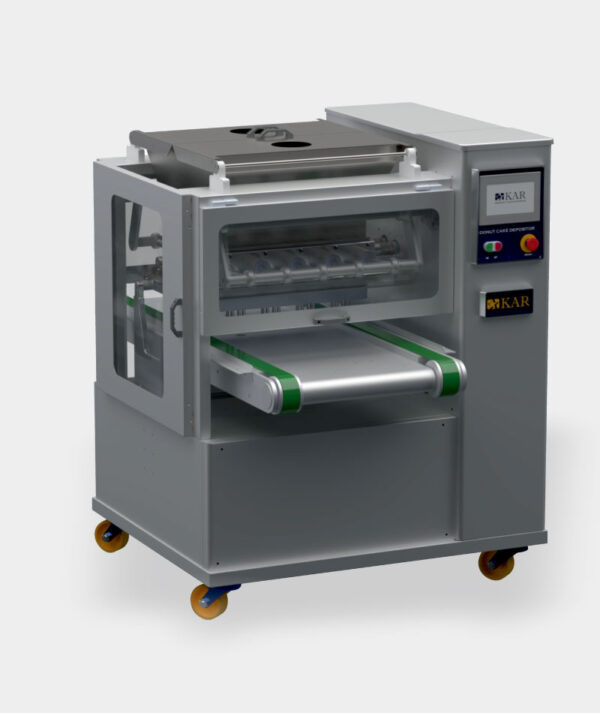

Salient Features:

• Accuracy in depositing dough with different densities is achieved using the servo system.
• The pistons and table unit is driven by servo for optimum control of different product densities.
• Simple and safe operation of the touch control systems enables easy change over of the products designs and weight.
• Teflon coated hoppers for stick-free dough movements.
• Heavy duty stainless steel construction.

Measurements:

DCVCD-350:- Height=1310 mm | Width=930 mm | Depth=1410 mm | Weight=550 Kg
DCVCD-400:- Height=1310 mm | Width=995 mm | Depth=1410 mm | Weight=600 Kg
DCVCD-450:- Height=1310 mm | Width= 995 mm | Depth=1410 mm | Weight=650 Kg
DCVCD-600:- Height=1310 mm | Width=1120 mm | Depth=1410 mm | Weight=750 Kg
DCVCD-700:- Height=1310 mm | Width=1220 mm | Depth=1410 mm | Weight=960 Kg
